STUCCO / putty

2-NOZZLE VALVE BAG STUCCO PUTTY FILLING MACHINE

Water-based putty � Plastic valve bags � Model SP-DII

Application

STUCCO putty (water-based)

Filling bag type

Plastic � Valve bag

Model

SP-DII

Quantitative method

Intelligent digital weighing controller

Filling range

10 kg, 20 kg, 25 kg, and 50 kg (programmable as desired)

Filling speed

4 � 25 bags / minute approx.

Power source

AC 220 V � 3-phase

Optional accessories

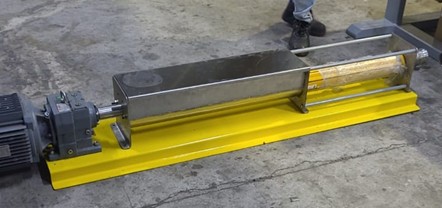

Rotor stator screw pump

Physical dimensions

2.5 m (W) � 2.0 m (D) � 1.5 m (H), with 2 ton storage hopper *

* Overall height shown as 1.5 m typical layout; confirm final footprint with factory drawings if your sheet lists �150 mtr�.

Description

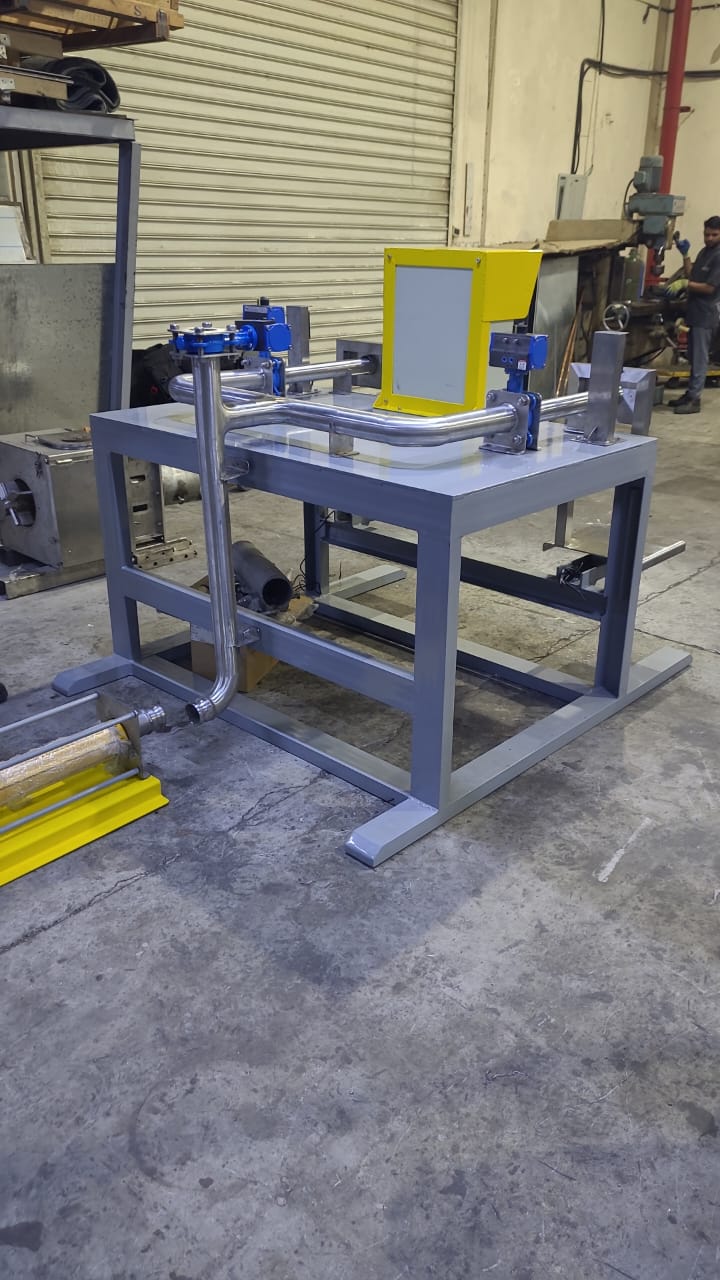

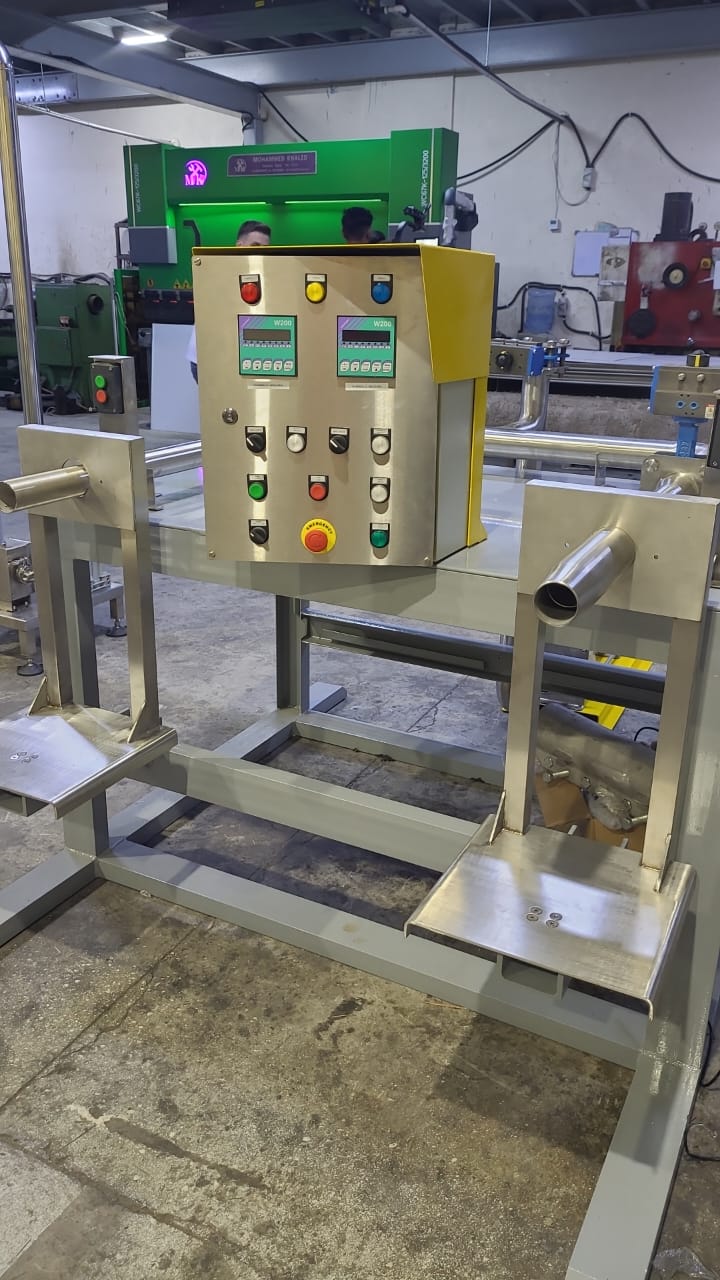

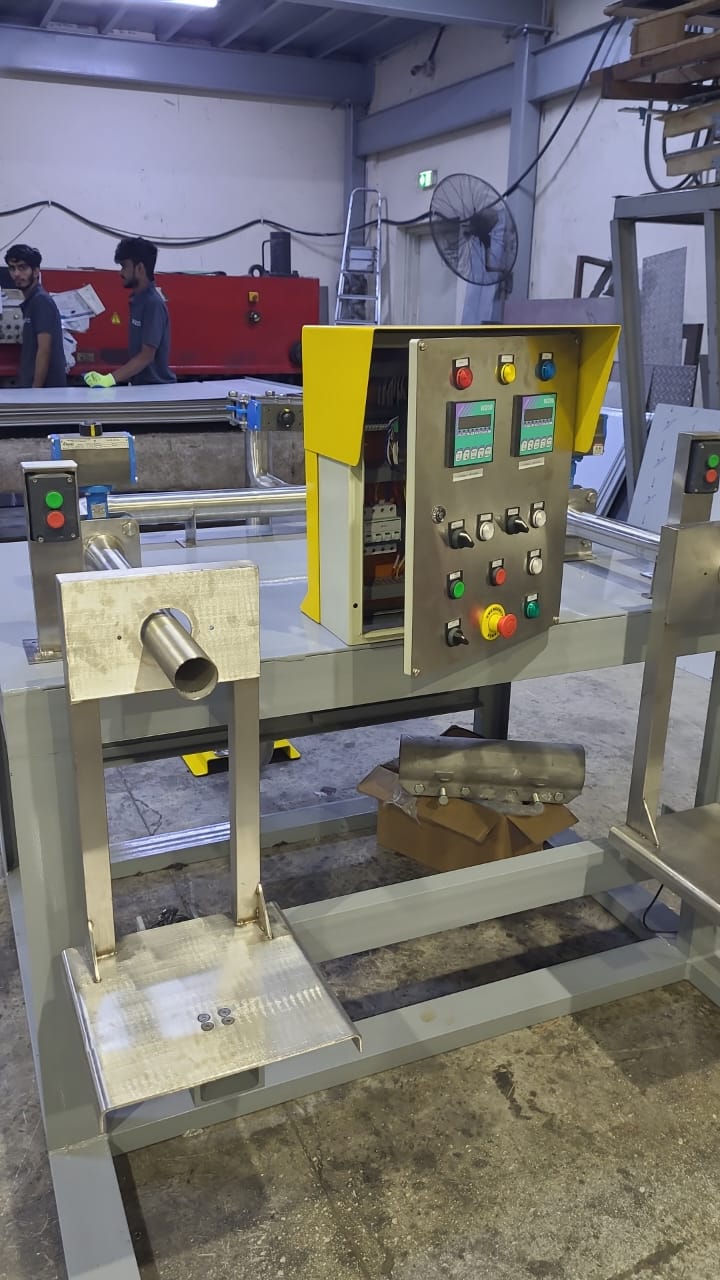

SP-DII fillers are designed to fill water-based STUCCO putty in valve bags and metal pails. SP-DII adopts an advanced intelligent weighing controller for accuracy and repeatability. Powder-coated mild steel structure with stainless steel tubular passages for water-based material supports long-term, low-maintenance operation.
