ASFS � ASPS
FLOOR & PLATFORM SCALES
Low-profile floor decks and heavy-duty platforms � Remote or column indicators on request

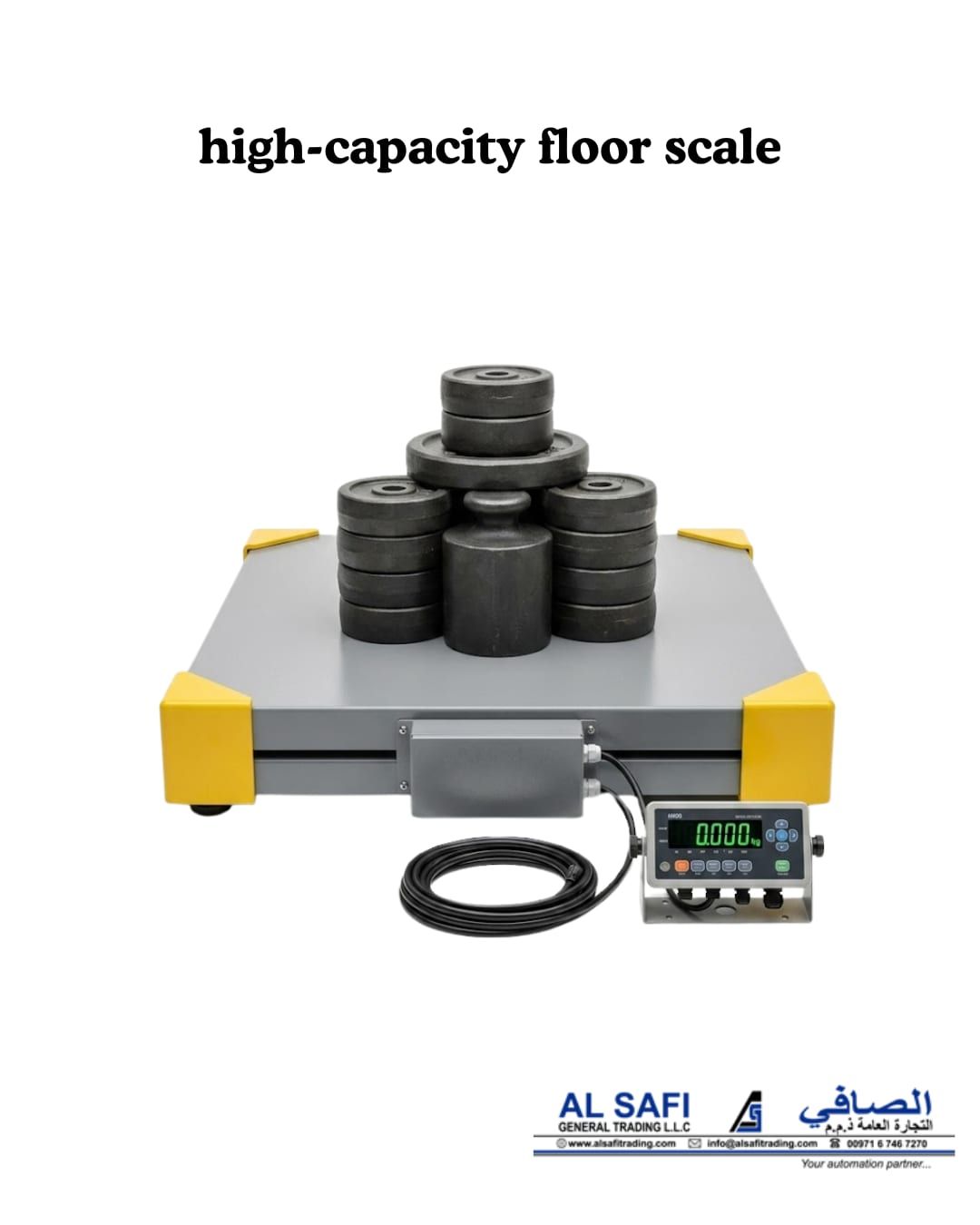

Floor scales
| Model | Max. capacity | Min. graduation | Platform (W � D) |
|---|---|---|---|
| ASFS-112X | 2000 kg | 200 g | 1.0 � 1.0 m |
| ASFS-123X | 3000 kg | 500 g | 1.2 � 1.2 m |
| ASFS-153X | 3000 kg | 500 g | 1.5 � 1.5 m |
| ASFS-155X | 5000 kg | 1 kg | 1.5 � 1.5 m |
| ASFS-2210X | 10 000 kg | 1 kg | 2.0 � 2.0 m |

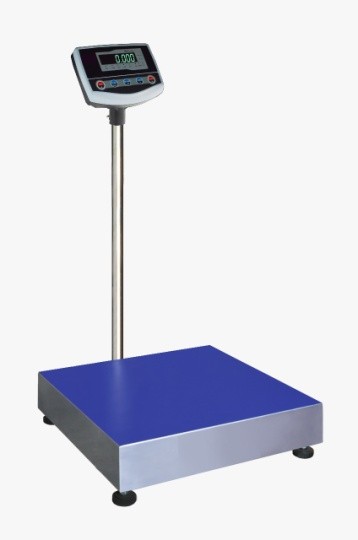

Heavy-duty platform scales
| Model | Max. capacity | Min. graduation | Platform (W � D) |
|---|---|---|---|
| ASPS-150 | 150 kg | 20 g | 40 � 40 cm |
| ASPS-300 | 300 kg | 50 g | 50 � 50 cm |
| ASPS-500 | 600 kg | 100 g | 60 � 60 cm |
| ASPS-600 | 600 kg | 100 g | 75 � 75 cm |
Description
Floor scales are built for pallet and bulk weighing with rugged decks and reliable load-cell systems; remote or column-mounted indicators keep the display where operators need it. Platform scales suit medium loads with compact footprints � ideal for production lines, dispatch, and warehouse lanes. Pit-mount, ramps, stainless steel, and software interfaces are available on enquiry.
